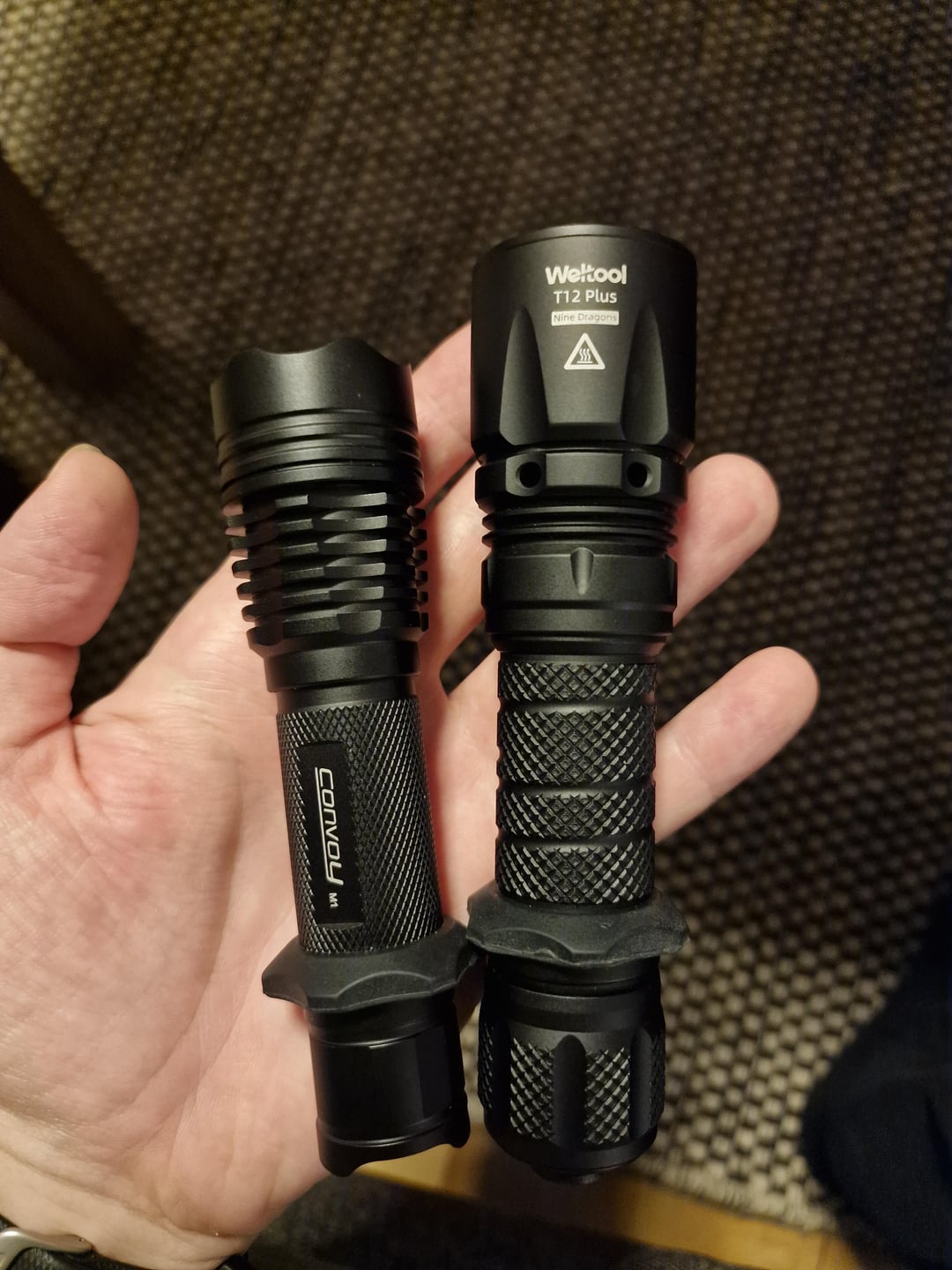

Weltool T12 Plus Reflowed SFT42R 5000K vs stock SFT40 6500K | Convoy M1 SBT90.2 OP Reflector – Measurements 👇 & Beamshots Comparisons 🔦🫘

2 Comments

1. MetaUndead 4 hours ago

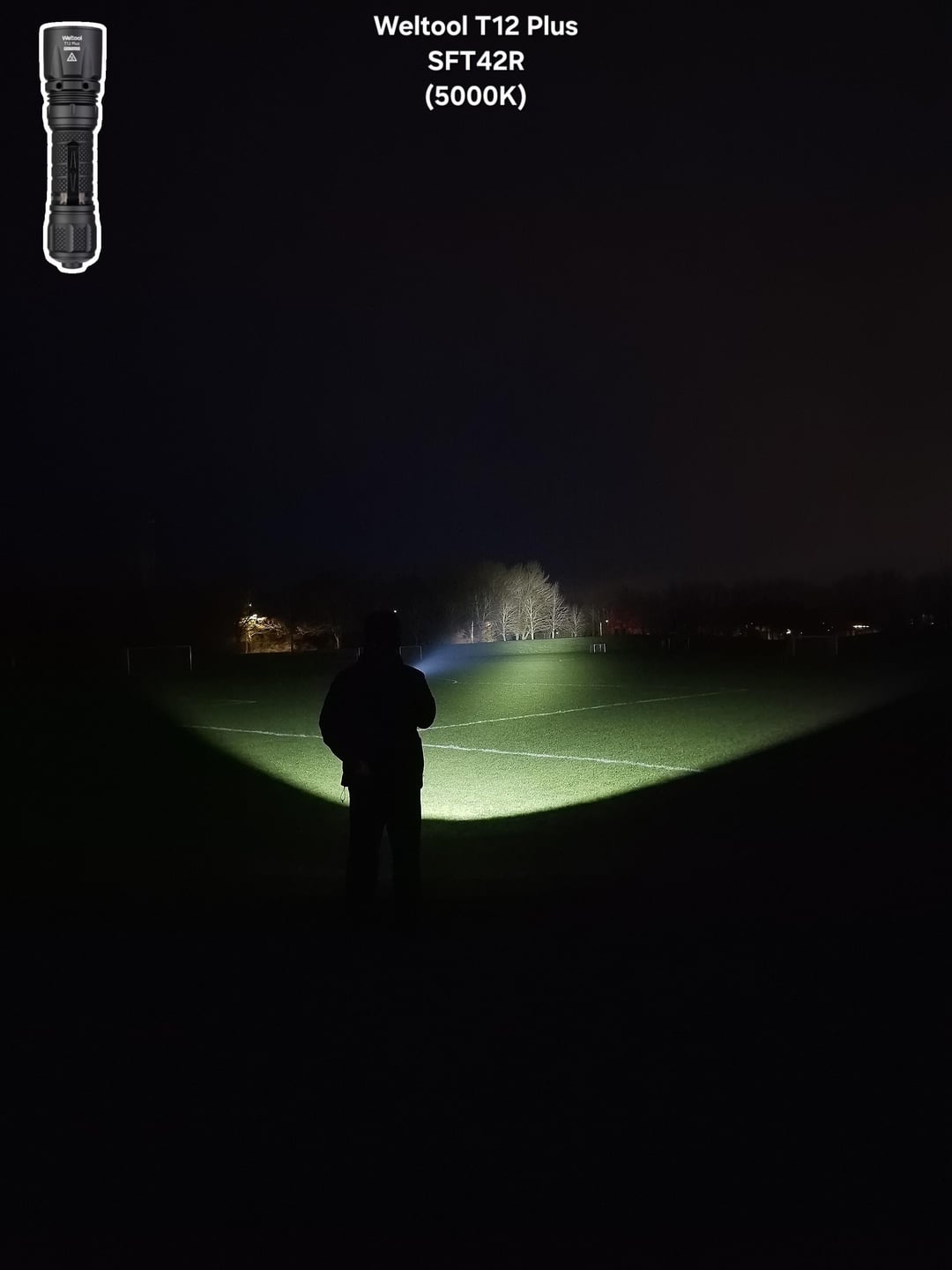

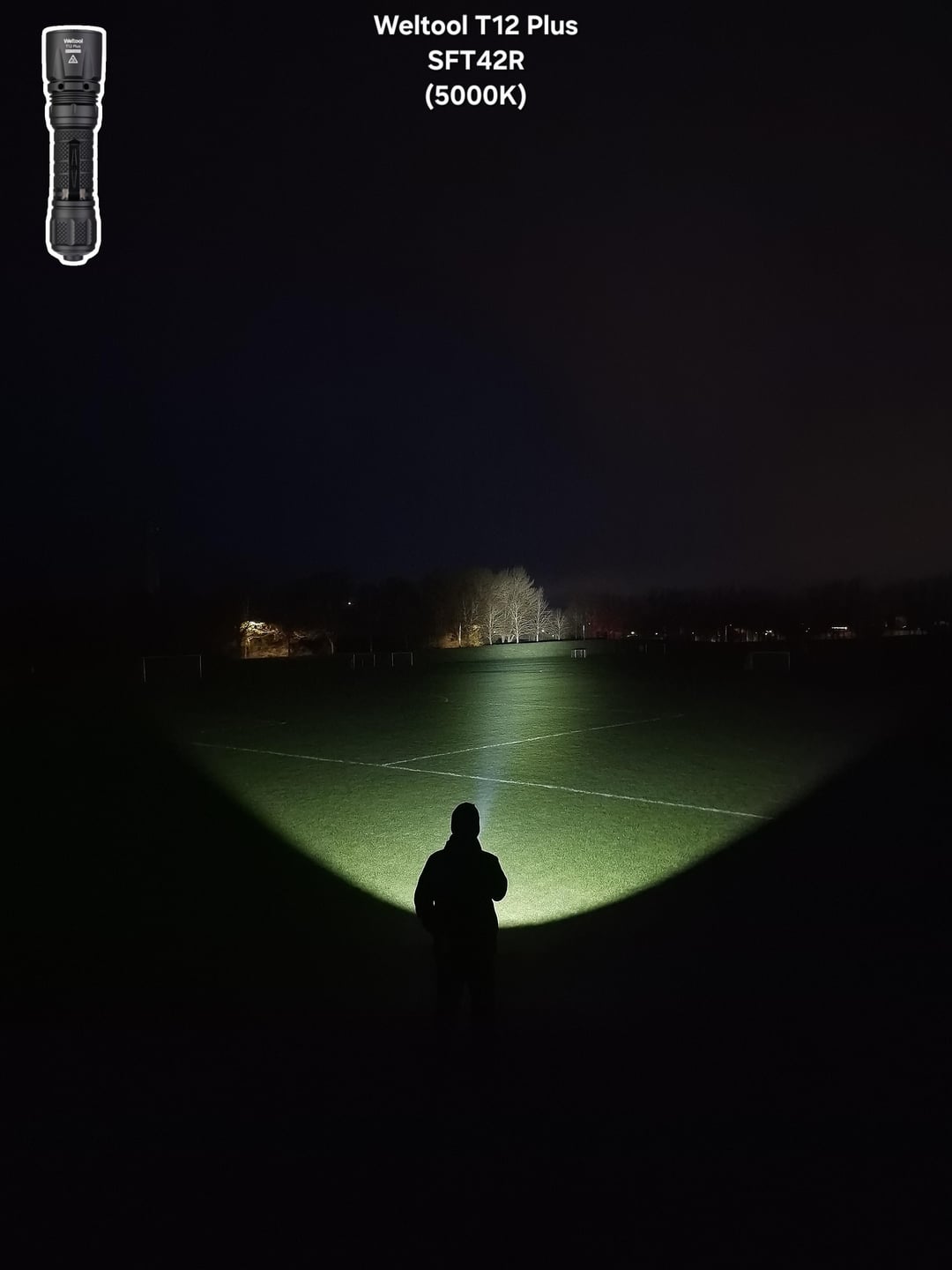

   ## 🔦 Weltool T12 Plus: SFT42R 5000K (Custom) vs. (SFT40 6500K Stock Weltool Measurements)

   | Mode | Output (Lumens) | Intensity (Candela) | Beam Distance (Meters) |
   | :— | :— | :— | :— |
   | **Full Power** | **2,250** (2,260) | **137,175** (148,000) | **741m** (769m) |
   | **Medium** | **570** (600) | **37,400** (37,000) | **387m** (384m) |
   | **Low** | **19** (22) | **1,425** (1,550) | **76m** (78m) |

   —

   ### **Weltool Performance Notes (SFT42R 5000K Custom)**

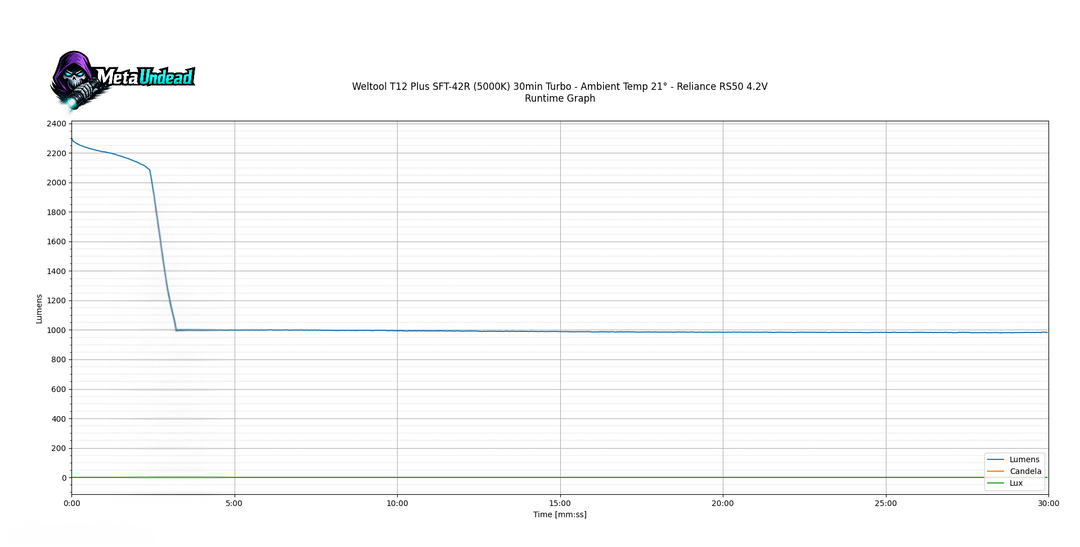

   * **Turbo Runtime:** 2:30 min before step-down.
   * **Sustained Output:** Settles at **1,000 Lumens**.
   * **Thermal Profile:** Max temp recorded at **62°C**.
   * **Build Info:** Custom Weltool SFT42R 5000K Neutral White swap.

   ***
   ***

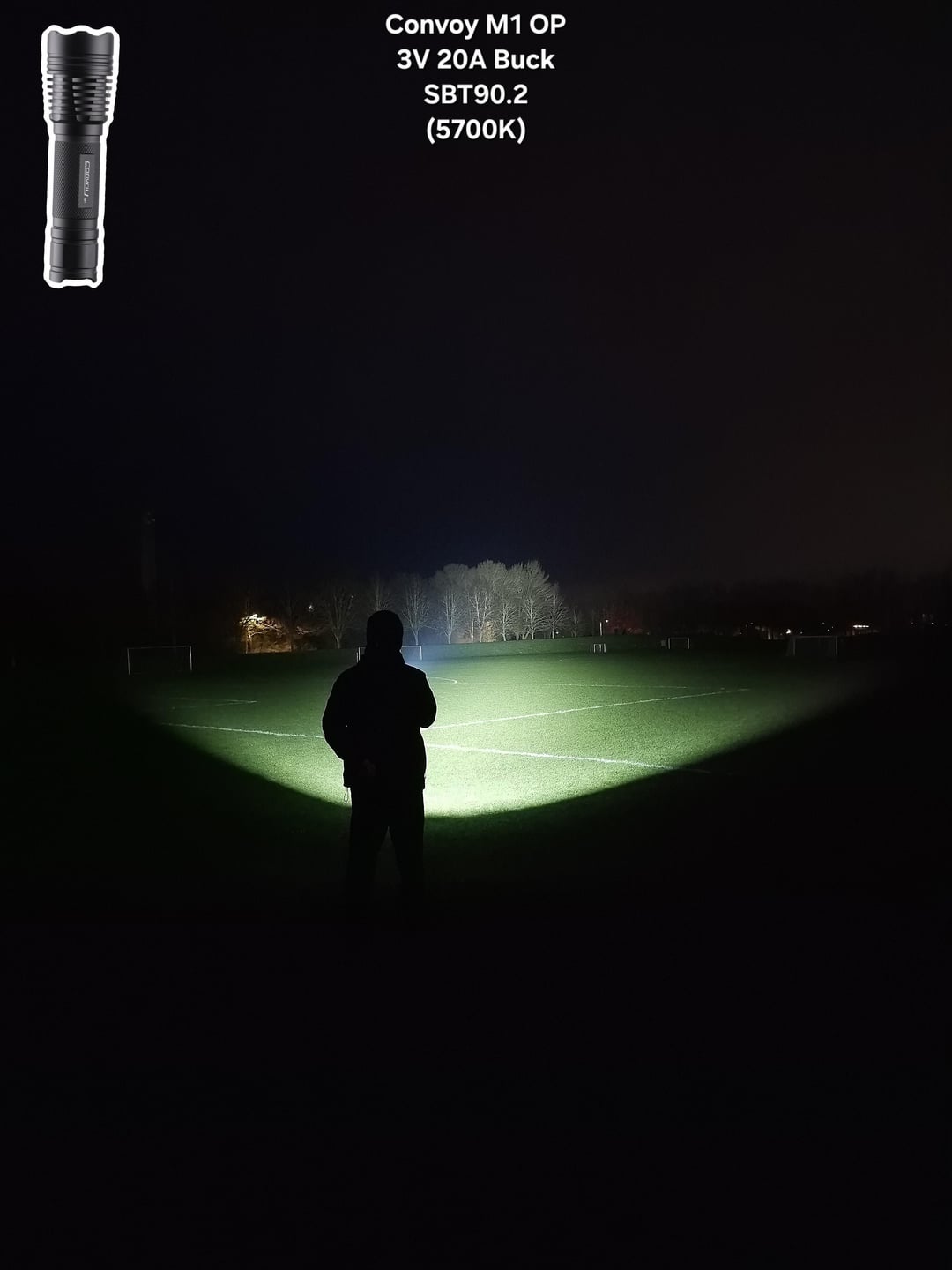

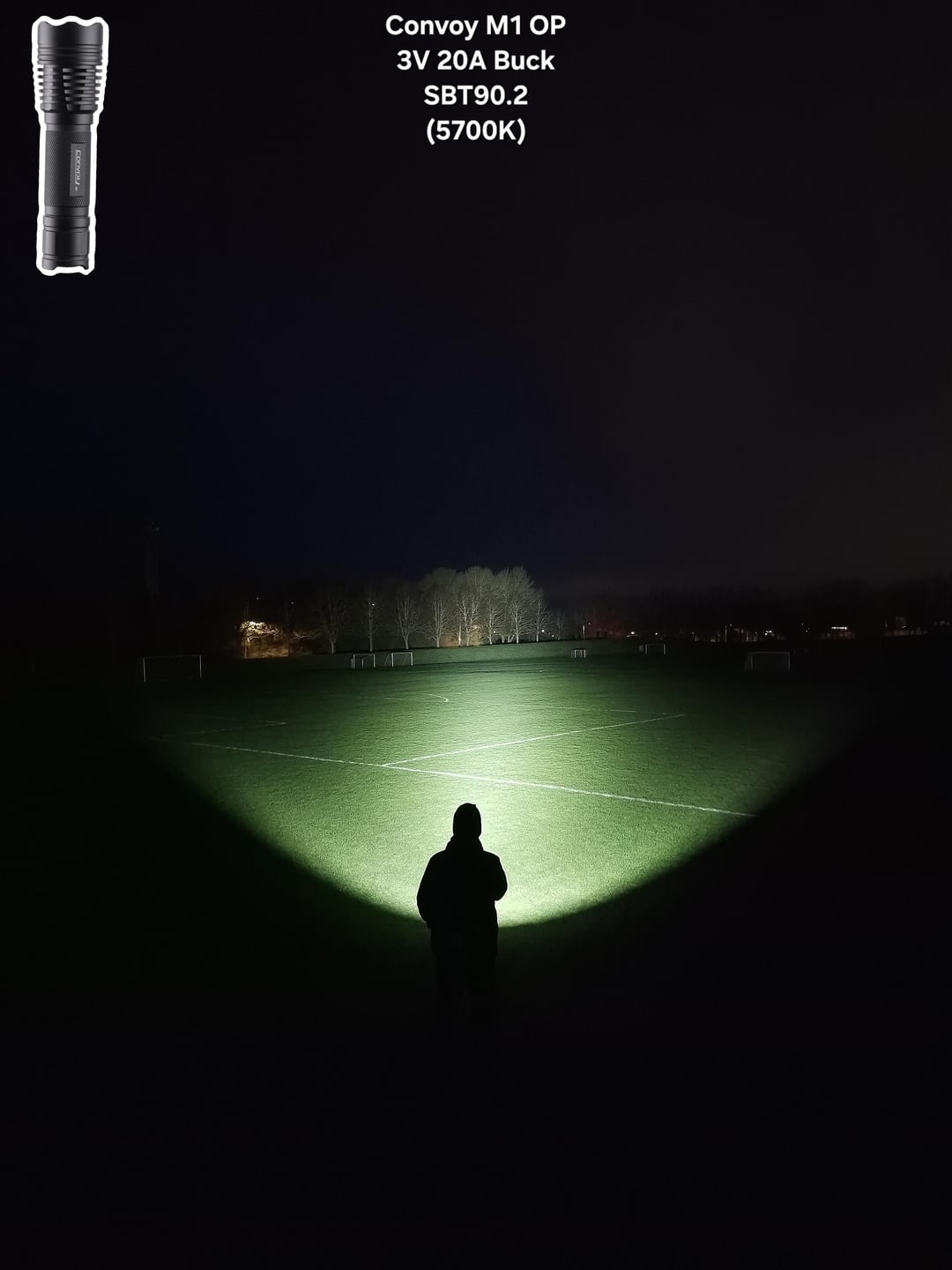

   ## 🔦 Convoy M1 Custom (SBT90.2 + 3V 20A Buck)

   | Mode | Output | Intensity | Beam Distance |
   | :— | :— | :— | :— |
   | **100% Turbo** | **4,800 lm** | **82,075 cd** | **573m** |
   | **35% High** | **1,850 lm** | **37,700 cd** | **388m** |
   | **10% Medium** | **1,200 lm** | **23,500 cd** | **307m** |
   | **1% Low** | **165 lm** | **3,400 cd** | **117m** |

   —

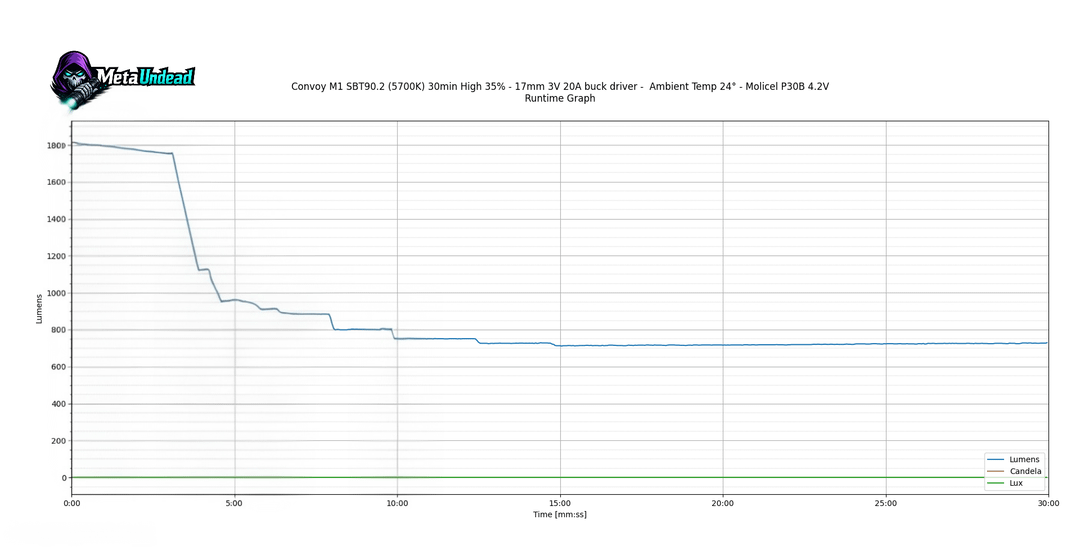

   ### **Convoy Performance Notes**
   * **Turbo Runtime:** Immediate slow step-down; sustained at **1:30 min**.
   * **Sustained Output:** Settles at **750 Lumens**.
   * **Thermal Profile:** Max temp recorded at **55°C**.

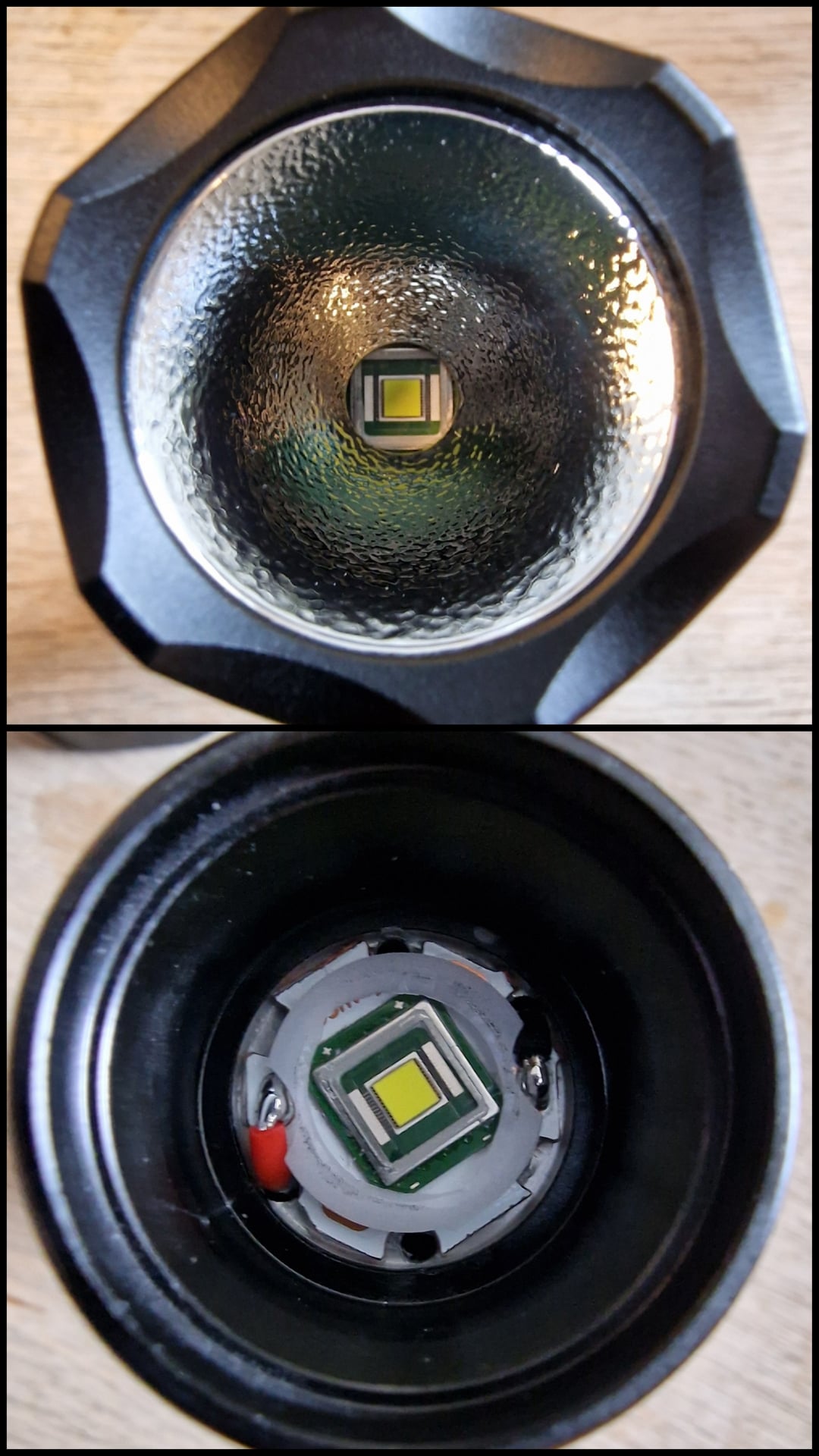

   * **Build Specs:** Luminus SBT90.2 / 3V 20A Buck / OP Reflector.
   * **Test Distance:** 5 Meters (All lights) | **Calculation:** Lux @ 5m × 25 = Candela.
