TIRs, Reflectors, and Lenses: dUV and CCT

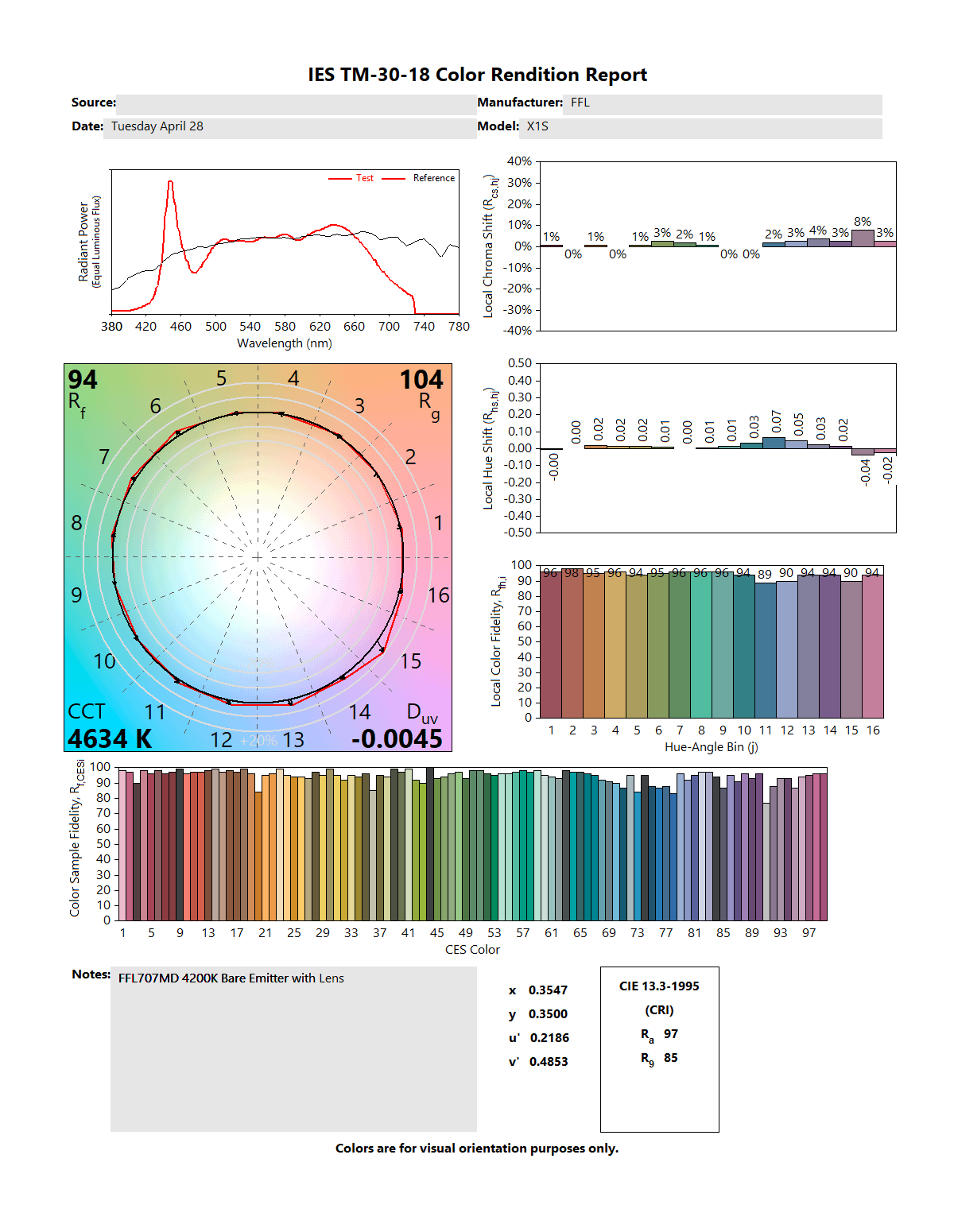

Following up on u/kotarak's excellent work, I thought I'd put my new ColorMunki to work measuring the various configurations of X1S + FFL707MD 4200K with regards to lenses, TIRs, and reflectors. The specific optics make a big difference in the dUV and CCT of the resulting beam! For bare emitter measurements, I put in a slip of white paper to try and minimize the effect of the anodizing on the light. I'm reading the hotspot for all measurements.

Here's the summary of the data:

It seems like the lens makes a much bigger difference when combined with a reflector than with other types of optics. Hopefully you all find this data useful!
