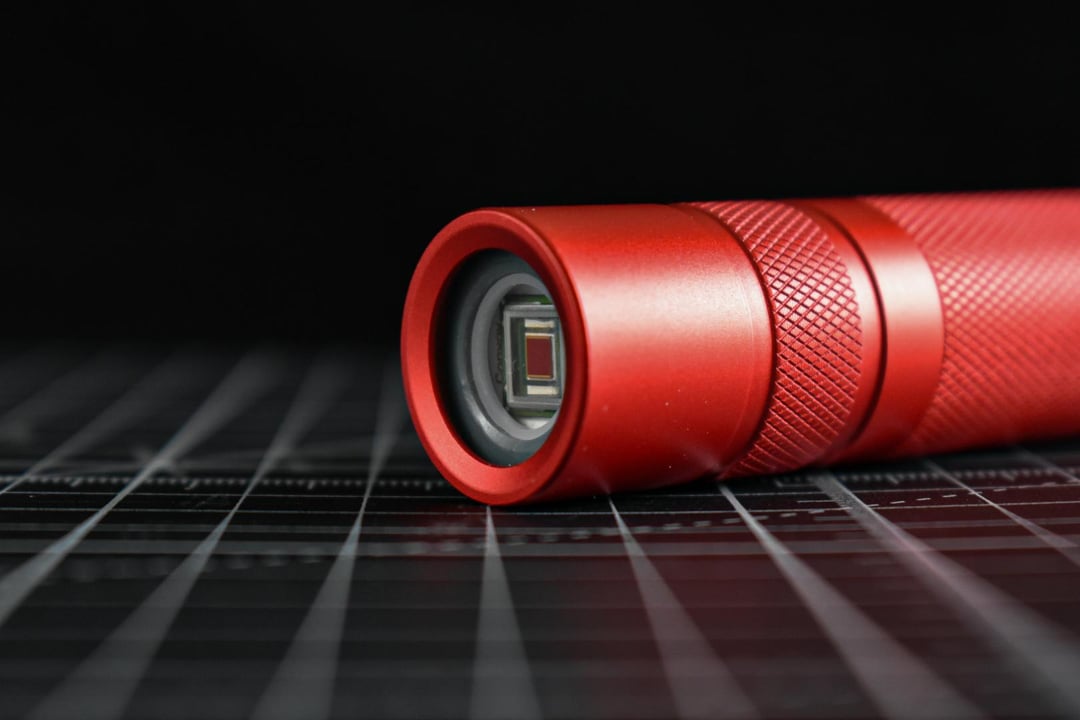

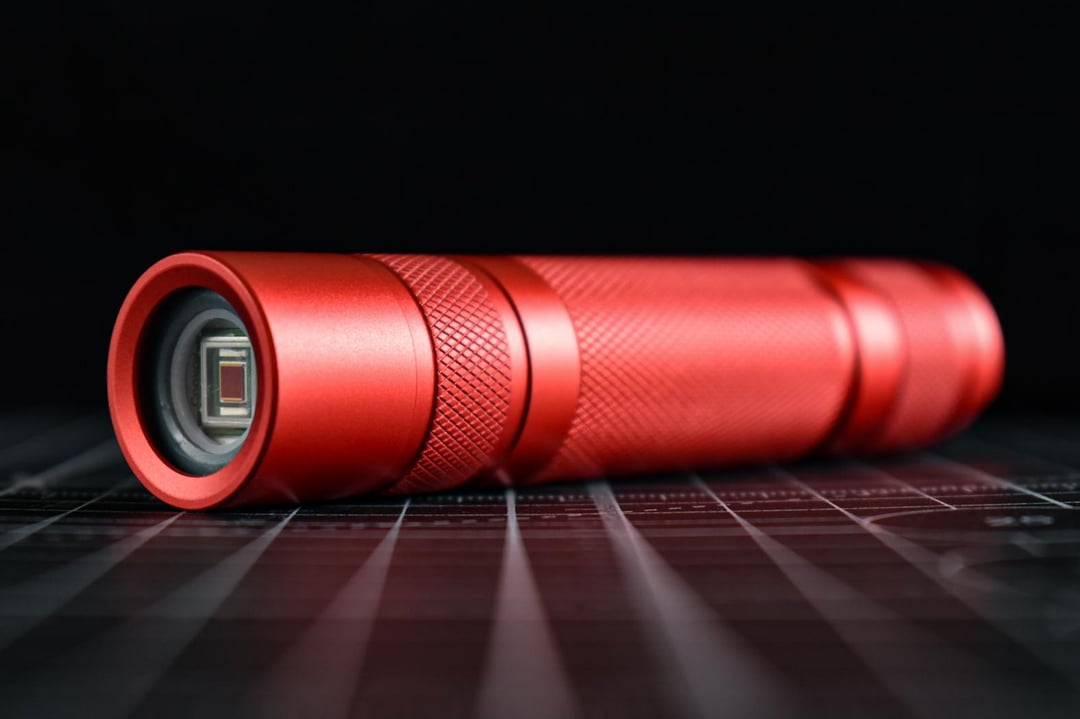

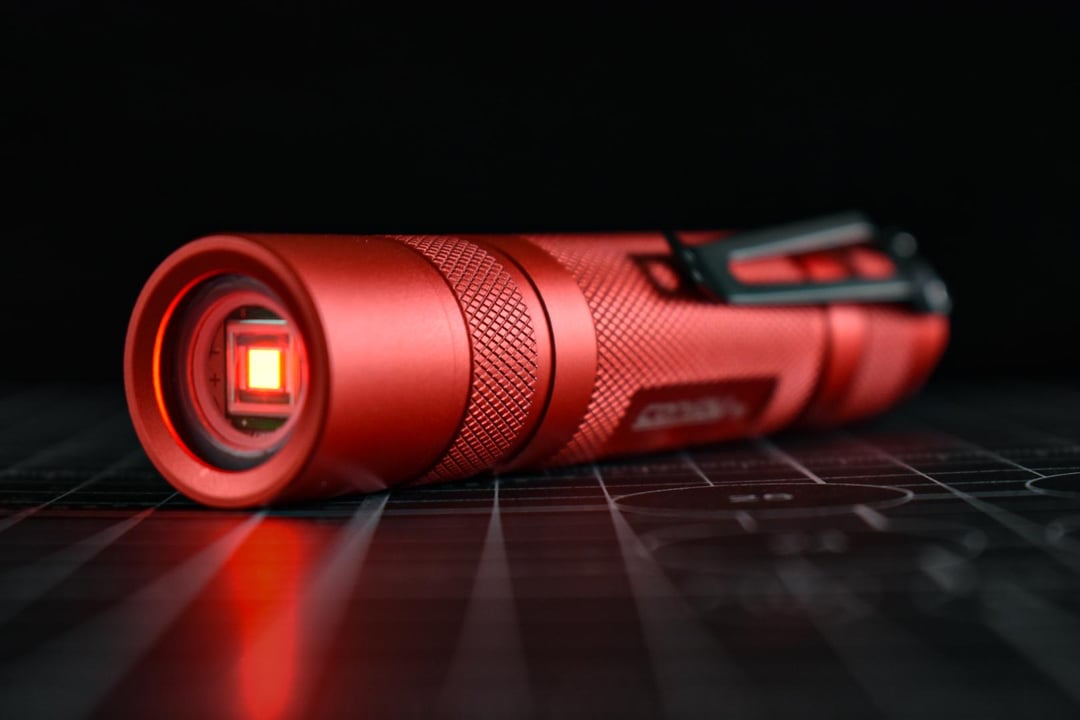

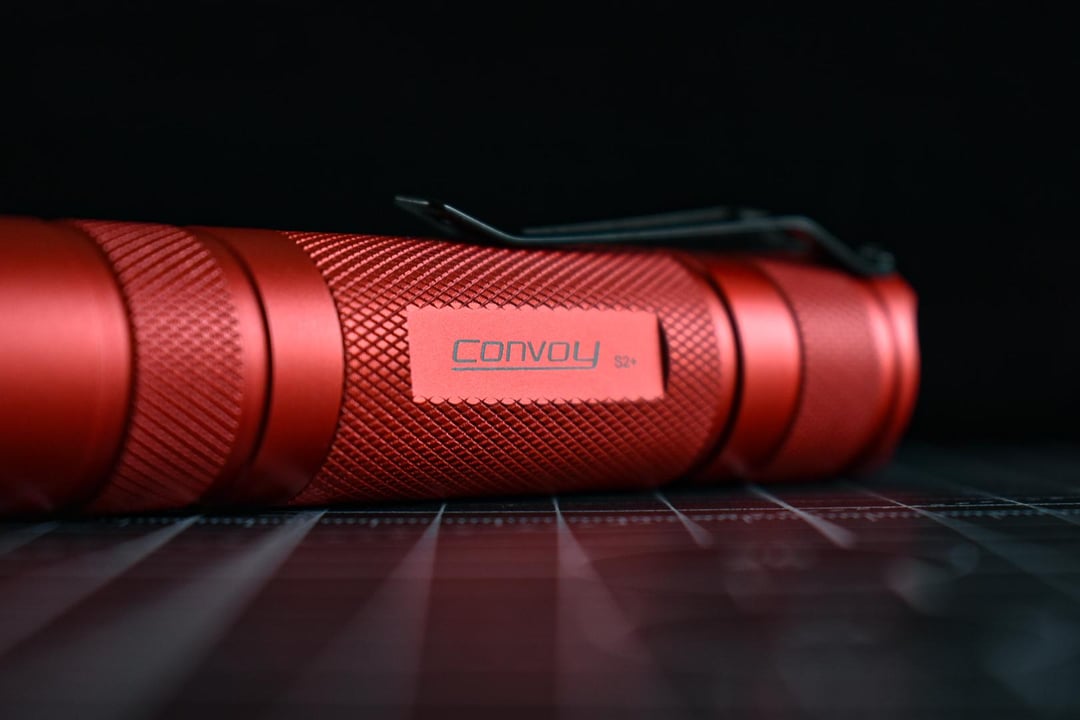

Host: S2+ Red Aluminium.

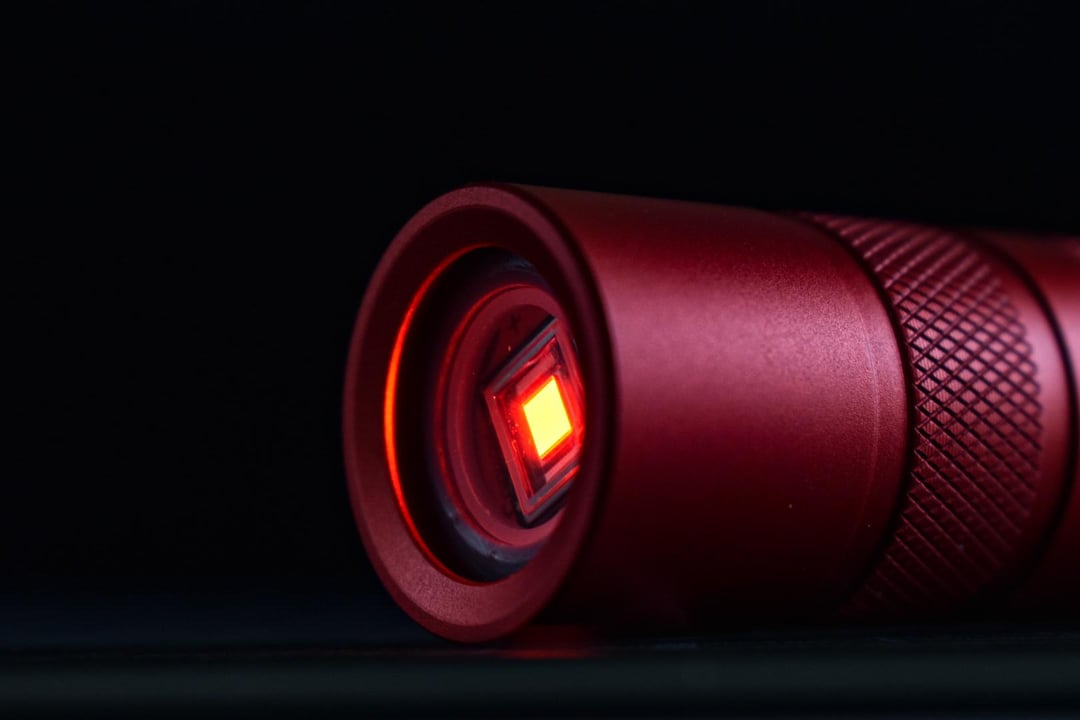

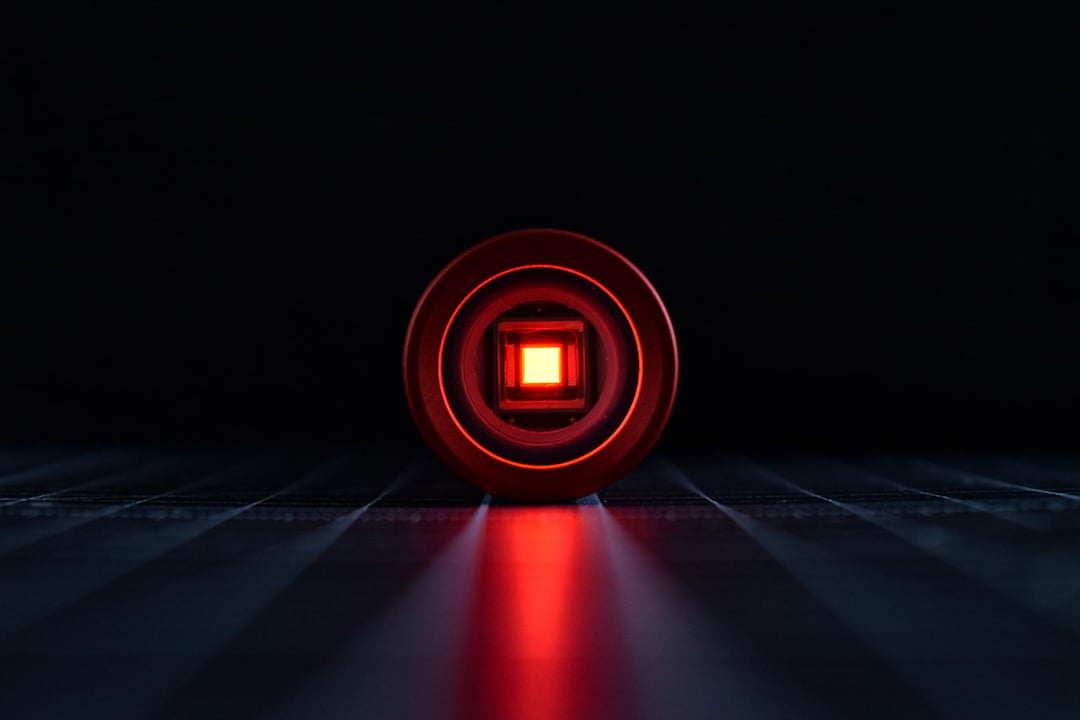

Emitter: SBT90.2 Red.
Driver: Convoy 3v 20A Buck Driver.
MCPCB: Convoy 20mm 9090 DTP Copper.
Heat Sink: Handmade Solid Copper Spacer.

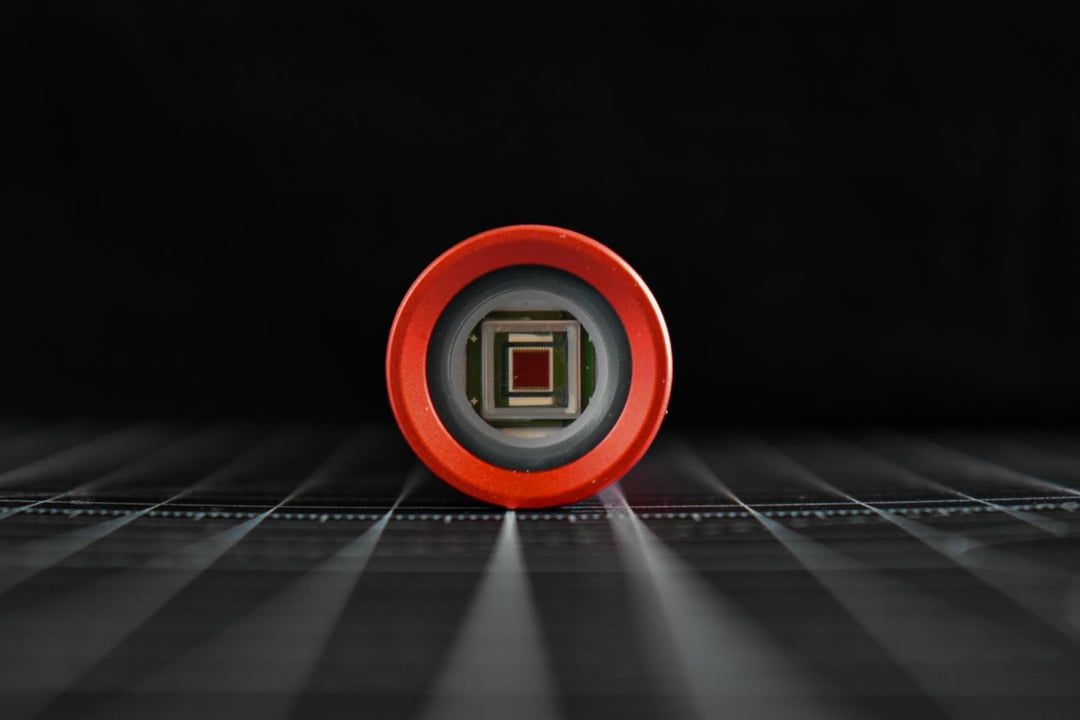

Mule Gasket: 3D Printed Resin + Convoy 13mm Ring.
Addition: S6 Pill.

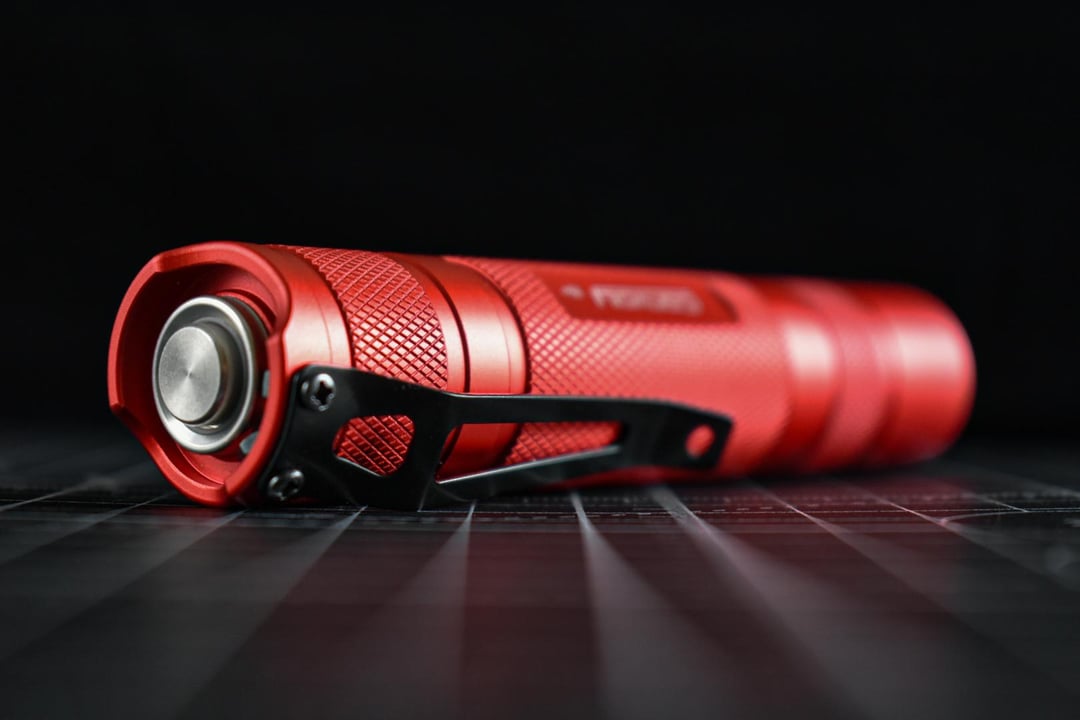

Addition: Convoy Black Finish Stainless Steel Clip.
So I know this guy, he's a bit of a legend… & he has these crazy ideas… He asked… I said yes… and the rest is now history!!!
Yes, it's a damn hot rod for sure! Yes, it's ridiculous! Yes, the Emitter belongs in a bigger host! BUT, who gives a damn when the results are as awesome as this?!?!
Please, take this for what it is… taking Nucking Futs to the next level & putting a whole lot of fun (and money 🫣) in a 18650 host 😜!
A bit about the build… I knew heat would be an issue, obviously, so I wanted as big a heat sink as possible. I used the pill from the S6, allowing for a larger void to put in a solid copper spacer! Yep, in a build like this, that is like pissing on a forest fire 😅 But the thought was there 👍🏻! I then modified 2 resin gaskets by hand, but ultimately went with the simpler one as it allowed for a lower profile when paired with the Convoy 13mm centering ring, which was necessary to avoid the driver leads & solder joints but to give me the finished look at the business end. It was not all plain sailing! There were highs, there were lows, there was trouble shooting… but I figured it out and the reward is sweet 👌🏻.
I'm very grateful to have had the opportunity to build this, & the next one 😜!
by Unlucky_League_8832
