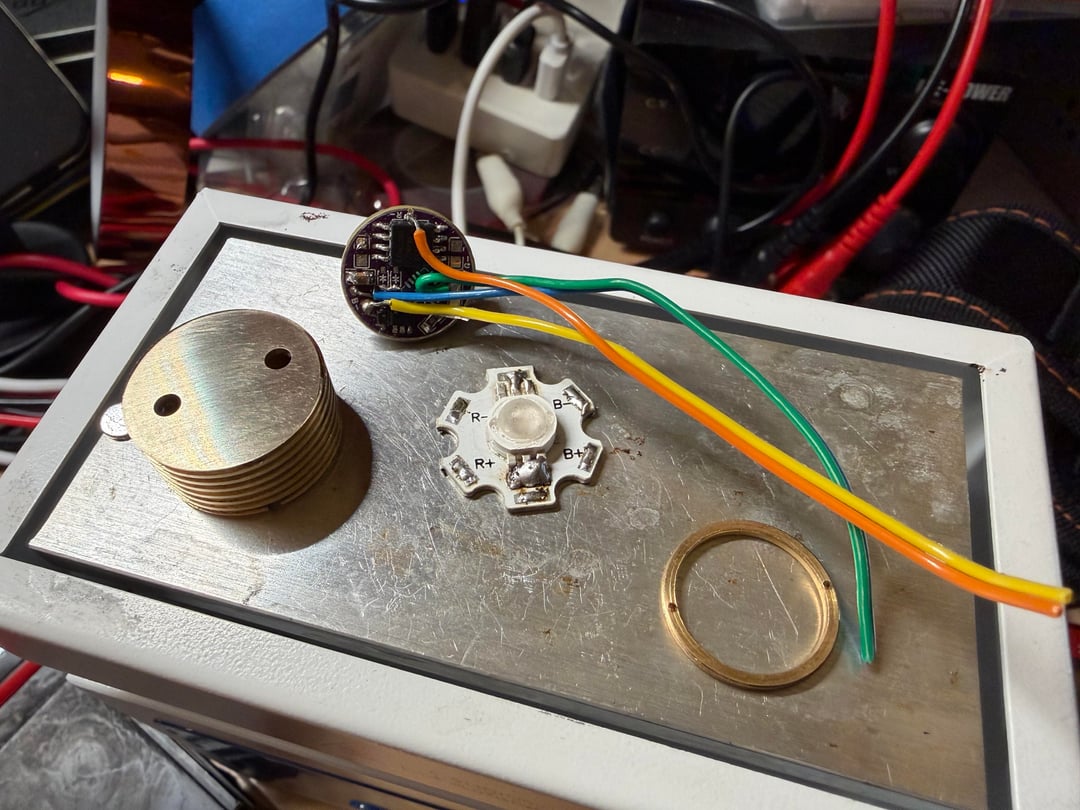

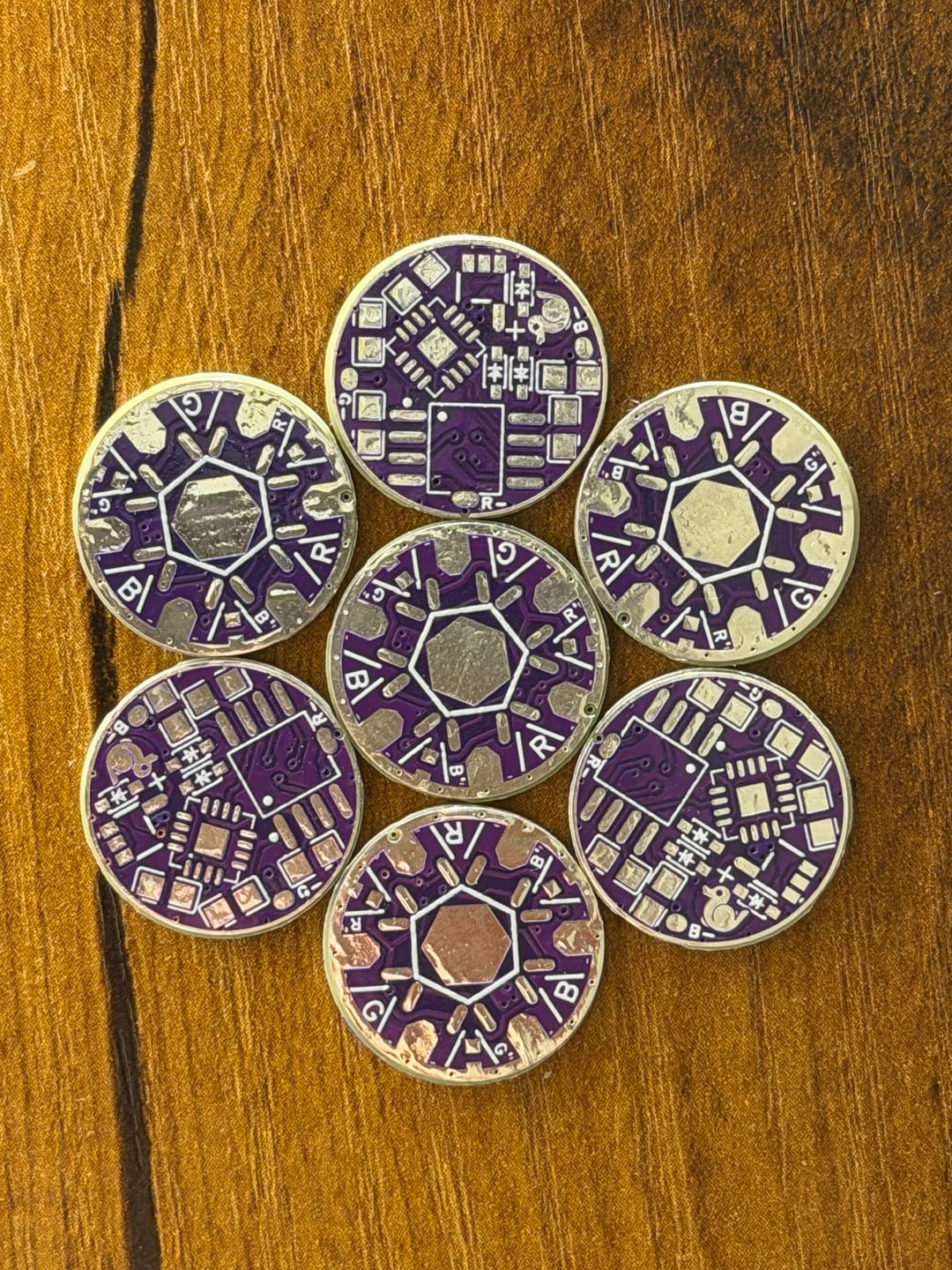

This build is using a custom driver with 3 channels of 2×7135 IC’s connected to a Attiny85 for generating the PWM signals, there is also space on the board for an ADXL335 accelerometer but at first moment I’m phasing the project with tail-switch UI as MVP.
The current UI is:

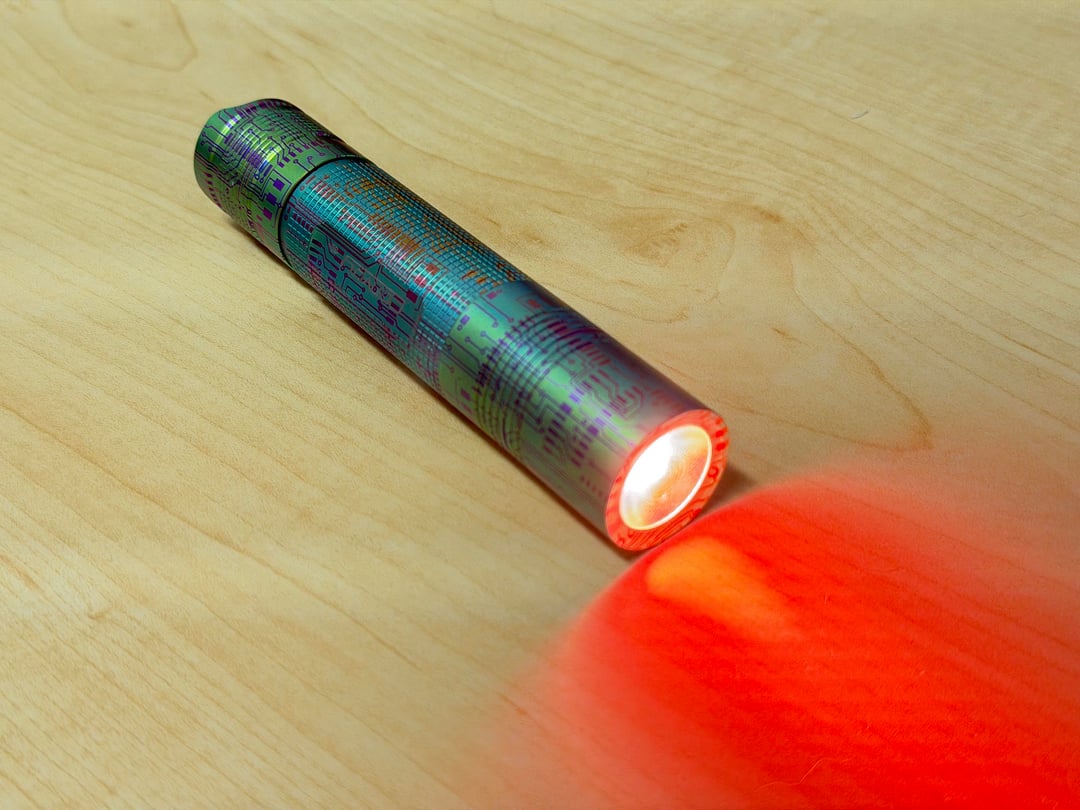

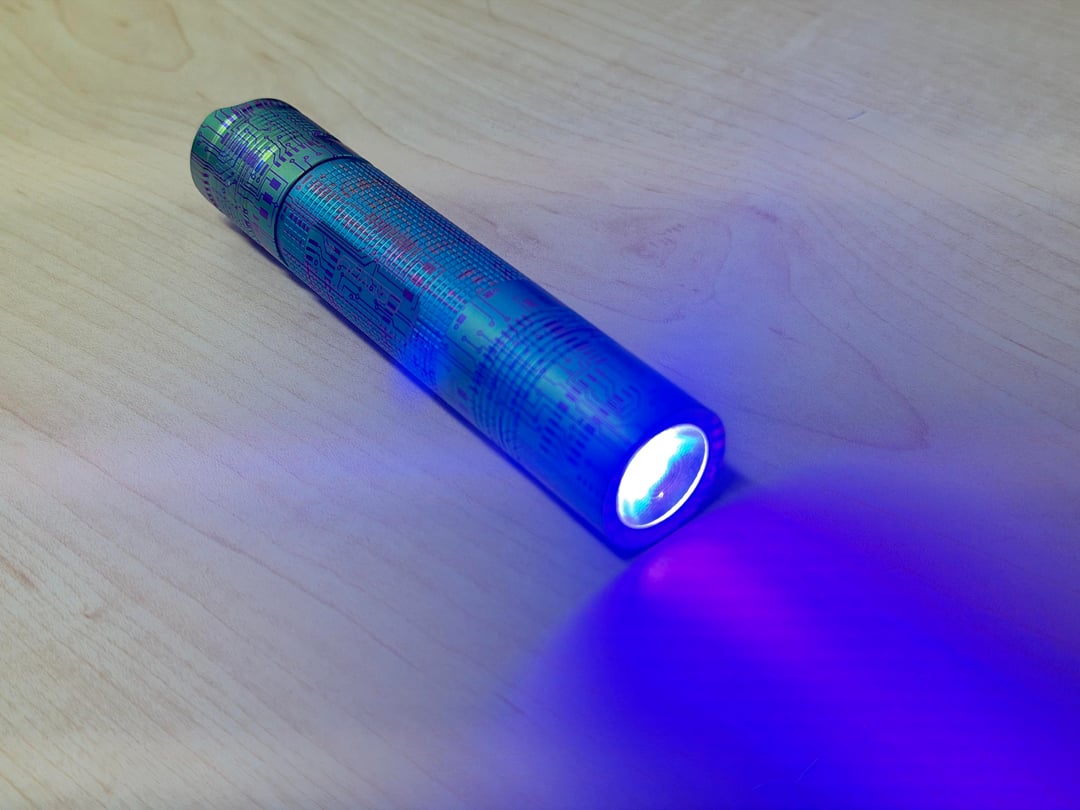

Color pick mode:
1 tap: Step the hue forward
2 taps: Step the hue backwards
3 taps: Resume animation mode on last speed or preferred speed
Animation mode:
1 tap: Lock the hue and switch to color pick mode
2 taps: Increase animation speed and also increase hue step size on color pick mode for faster search
3 taps: Decrease animation speed and also decrease hue step size on color pick mode for more granularity

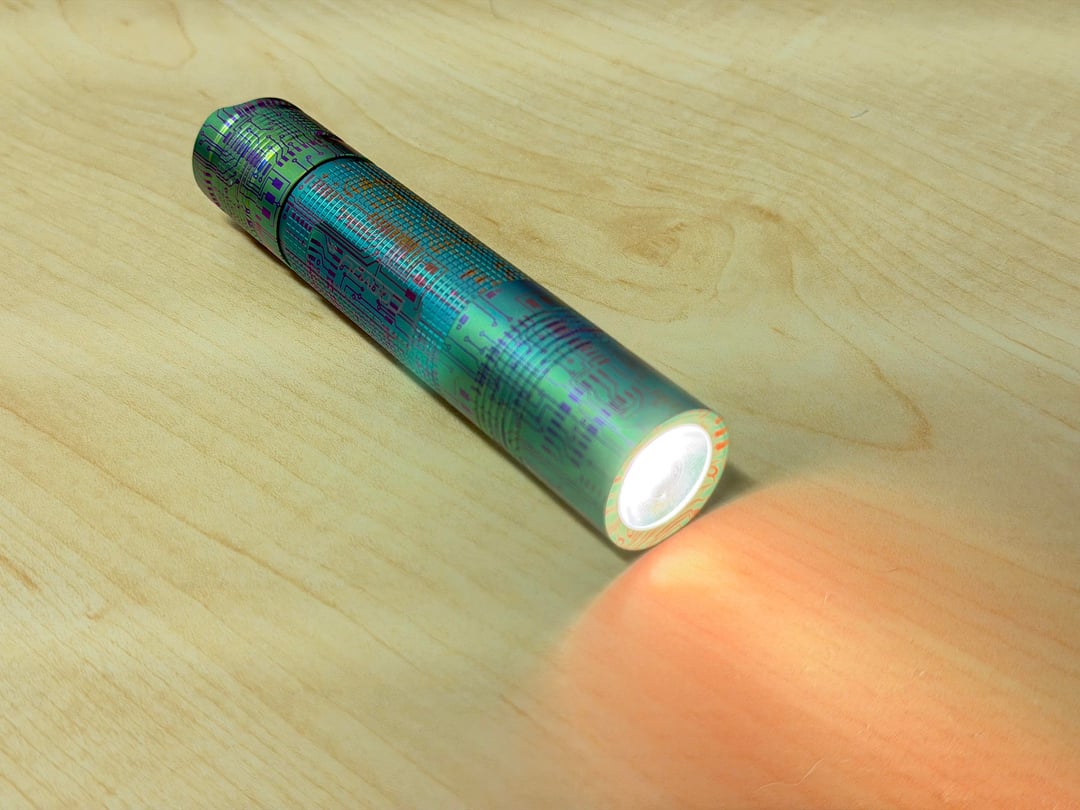

5 taps: white mode
6 taps: enter brightness config mode, keeps hue or animation or white mode:
– 1 tap: double brightness up to 100%
– 2 taps: halve brightness up to 0.78%
– 3 taps: saves and exit brightness config mode
8 taps: toggle default mode (color picker or animation)
16 taps: Reset preferences
Cold boot: Starts on a “random” Hue every time! (this is hard!)
And as I’m basically driving the hue here with the UI, this got to be the driver’s name!
