Looking to swap the driver for one that isn’t cycle through style. It’s a tail switch, single 18650.

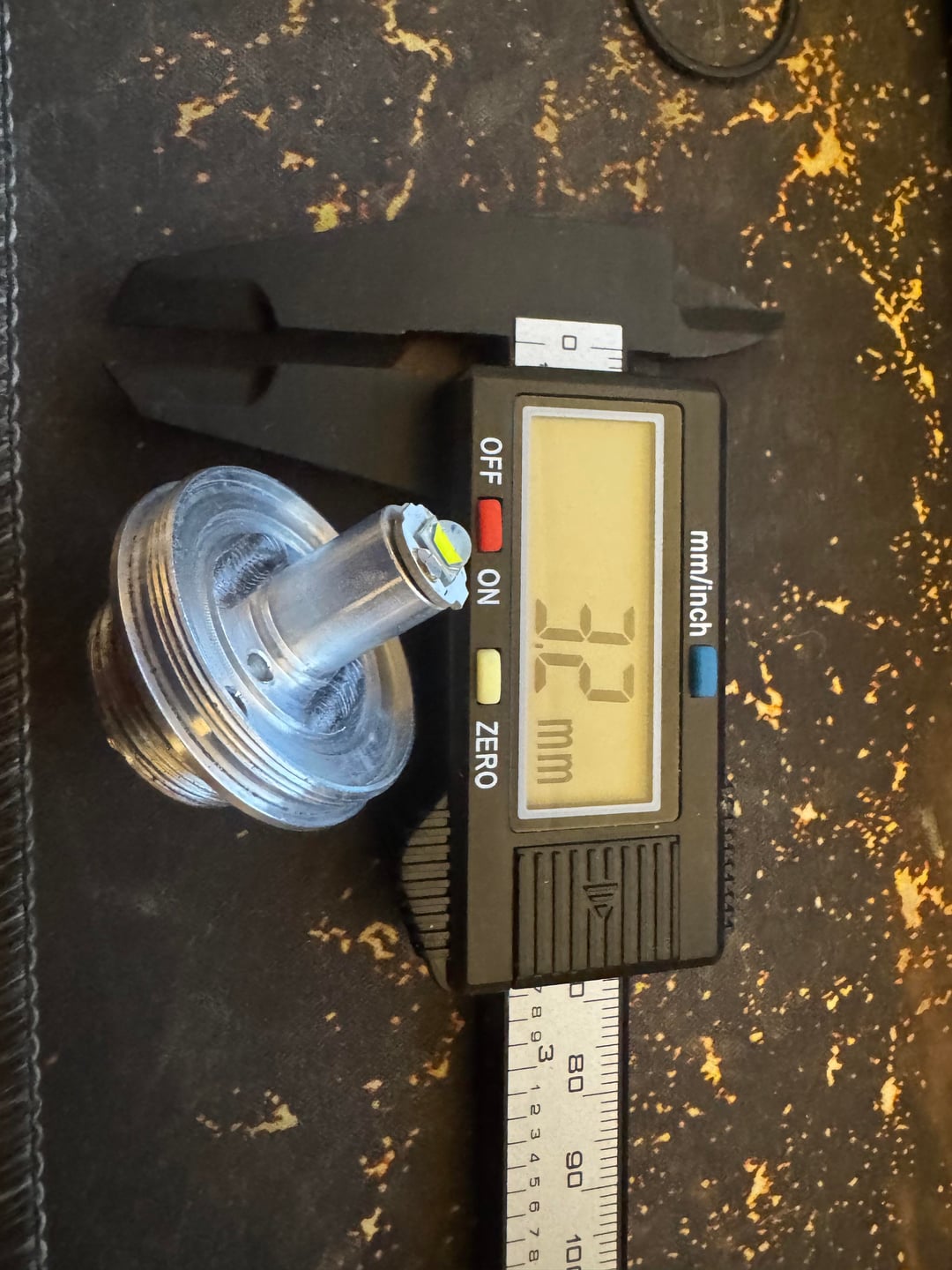

The existing board is 20mm at the parallels and the led is about 3mm.
There seems to be a lot of boards on aliexpress but I’m not sure what is appropriate.
by Blackbosh
4 Comments
What make and model is the light?
20mm driver: [https://convoylight.com/products/20mm-3v-8a-buck-driver](https://convoylight.com/products/20mm-3v-8a-buck-driver)
The LED is probably a 3535, but you’re going to have to reflow it on the MCPCB since it’s not a common one.
This emitter probably works, but can’t really tell unless you show us the footprint of the current one:
[https://convoylight.com/products/luminus-sft-25r](https://convoylight.com/products/luminus-sft-25r)
I just measured the current on max and it’s drawing 2.2A at 4.0V on high
This drops to 1.2A and 0.5A for medium and low
Uses the cree xml2 problem will be the onboard charging port won’t be compatible with most commonly available drivers
